With Manual Hubs

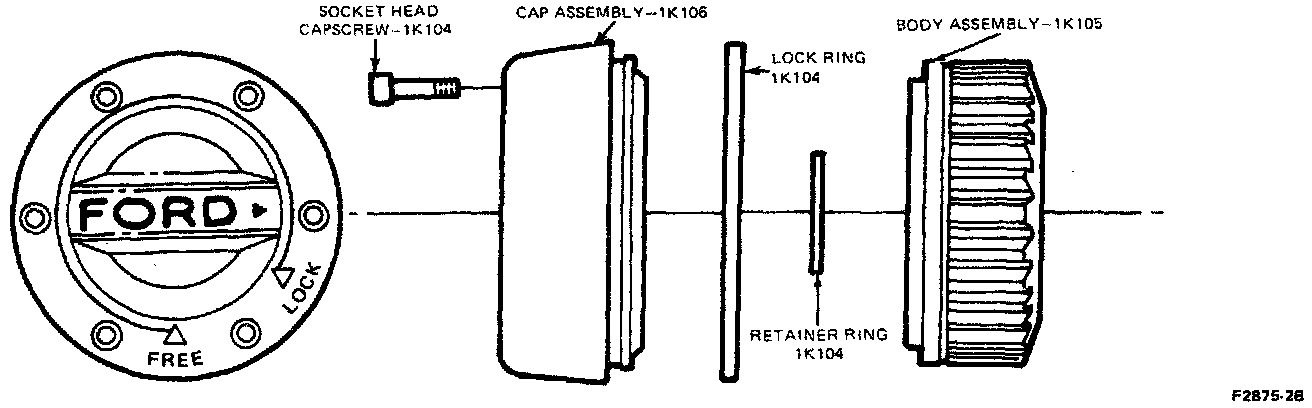

Manual Locking Hub (Warner):

REMOVAL

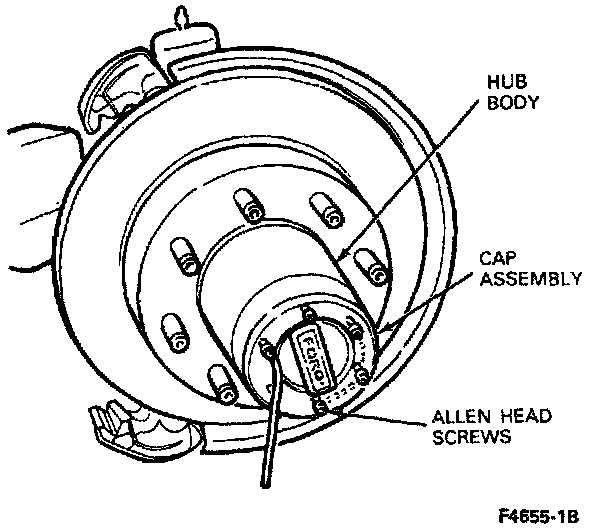

Cap Removal -- Manual Locking Hub:

1. Separate the cap assembly from the body assembly by removing six capscrews and remove the cap from the body.

Lockring Removal -- Manual Locking Hub:

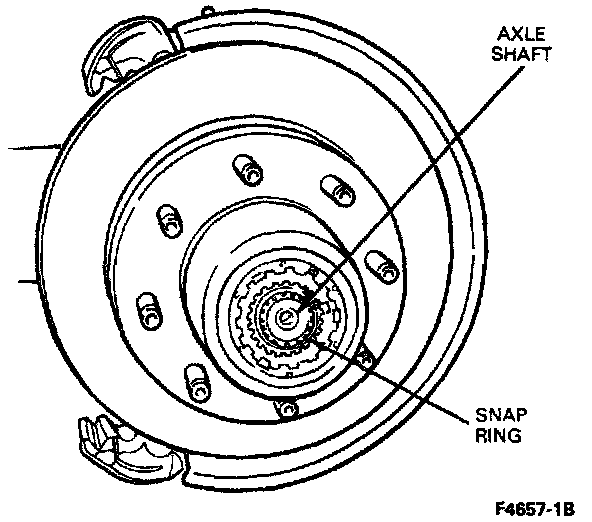

2. Remove the snap ring that retains the axle shaft in the hub body assembly.

Snap Ring Removal -- Manual Locking Hub:

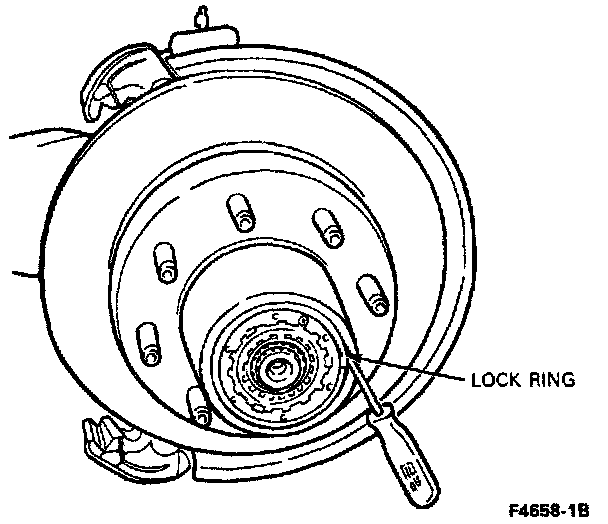

3. Remove the lock ring seated in the groove of the wheel hub.

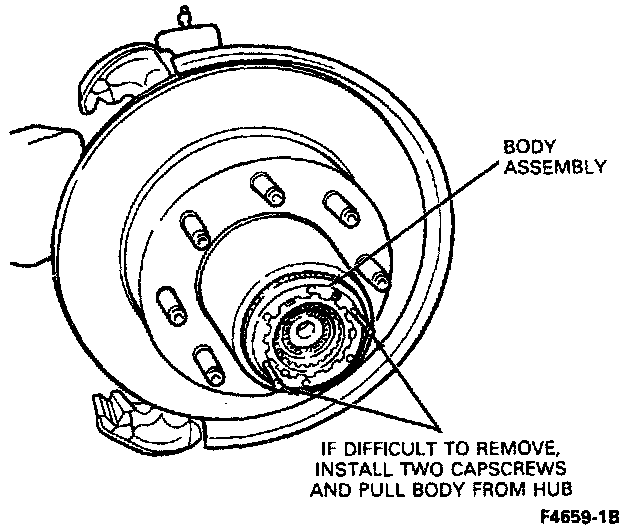

Body Removal -- Manual Locking Hub:

4. Remove the body assembly from the hub. If the body is difficult to remove, install two capscrews and pull the body assembly out of the hub.

INSTALLATION

1. Insert the body assembly in the hub.

2. Install the lock ring in the groove to retain the body in the hub.

3. Install the snap ring that retains the axle shaft to the body.

4. Position the cap assembly on the body. Install the six capscrews and tighten to 4.0-6.0 Nm (35-53 lb in).

NOTE: Do not pack the cap assembly with grease. Excessive grease can cause excessive dialing effort.
