Front Drive Axle - Identification Tags

9214ford02

Article No.
92-5-14

February 26, 1992


AXLE - FRONT DRIVE AXLE IDENTIFICATION TAGS - 4X4
MODELS


LIGHT TRUCK: 1985-90 BRONCO II
1985-92 BRONCO, F-150-350 SERIES, RANGER
1991-92 EXPLORER


ISSUE: The 1991 and prior model front drive axles had identification information in the following three (3) places...

^ It was on a metal tag attached to a carrier cover mounting bolt.

^ It was stamped into the left side axle arm (tube) front face inboard of the U-Joint.

^ It was on a paper tape tag wrapped around the axle arm (tube).

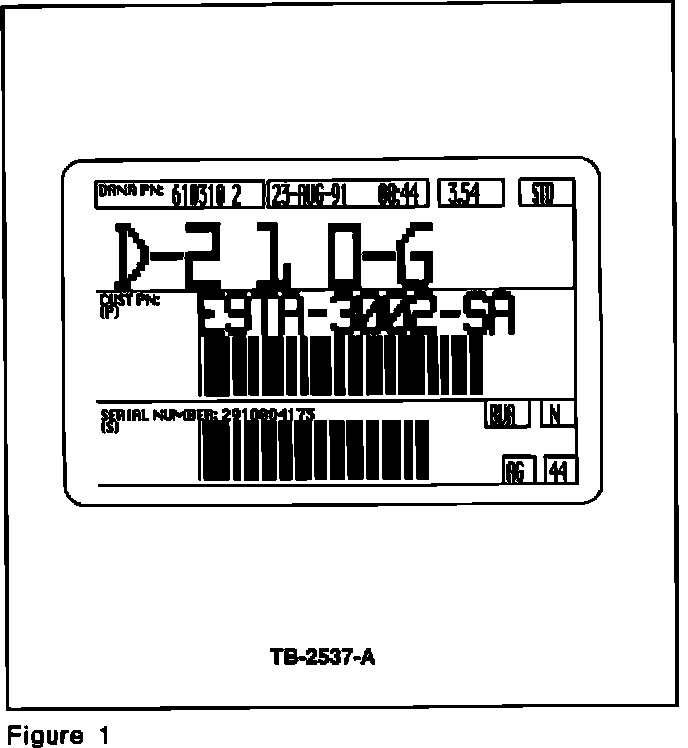

The 1992 model year axles use a glue-on label that replaces all three of the prior identification markings, Figure 1. The new label is on the rear face of the right hand arm (tube).

ACTION: Since this glue-on label, Figure 1, is the only identification, be sure that the information on the label is recorded in a retrievable place before any service actions are taken which will damage/destroy or remove the label.


OTHER APPLICABLE ARTICLES: NONE
WARRANTY STATUS: INFORMATION ONLY
OASIS CODES: 509000
