AOD 4-SPD A/T

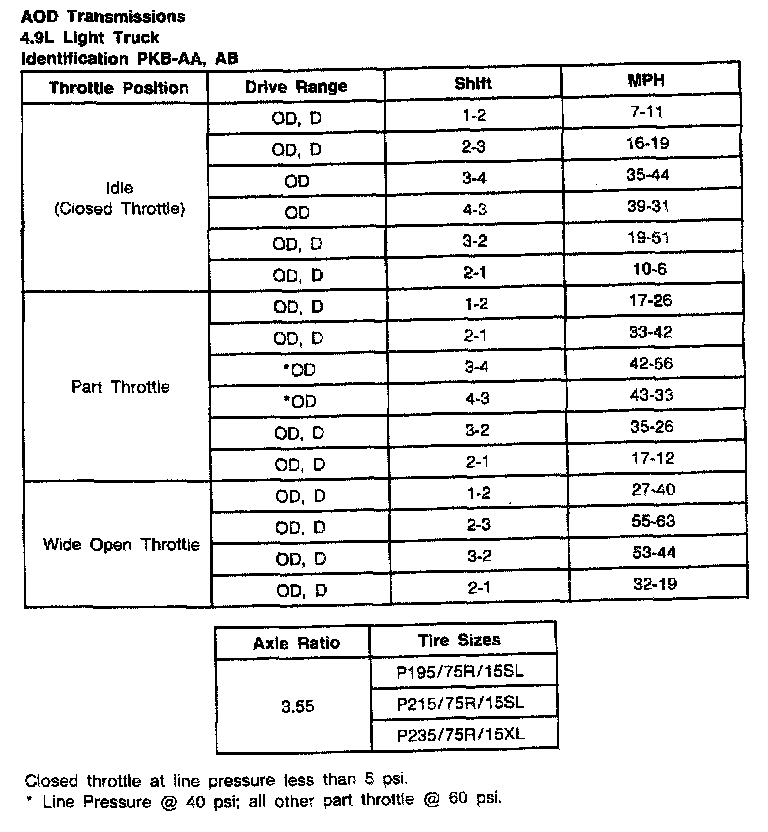

AOD 4-spd A/T, Shift Speeds (4.9L Lt.Trk):

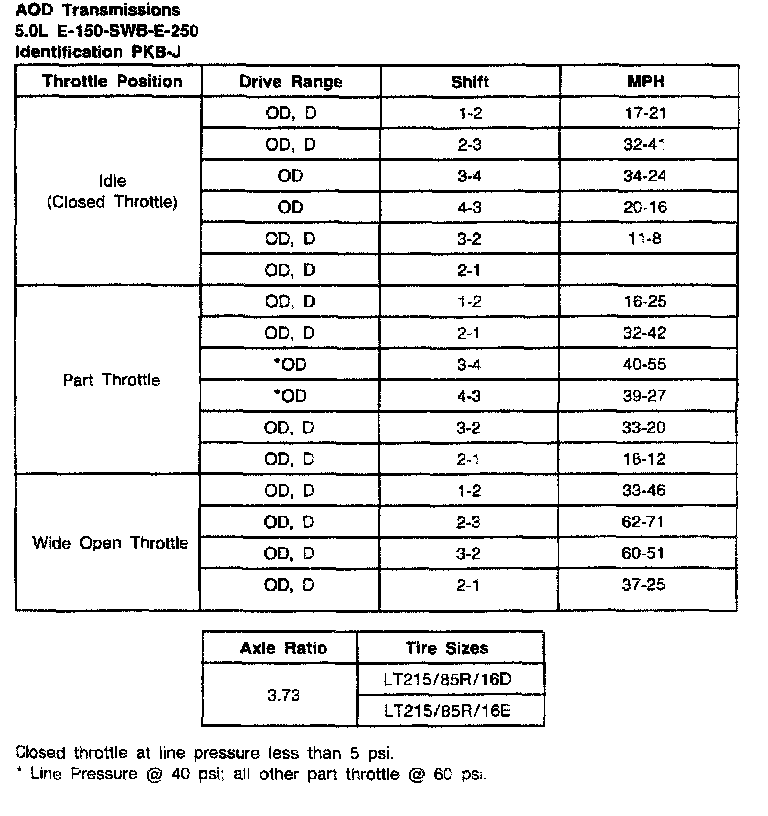

AOD 4-spd A/T, Shift Speeds (5.0L E150/E250):

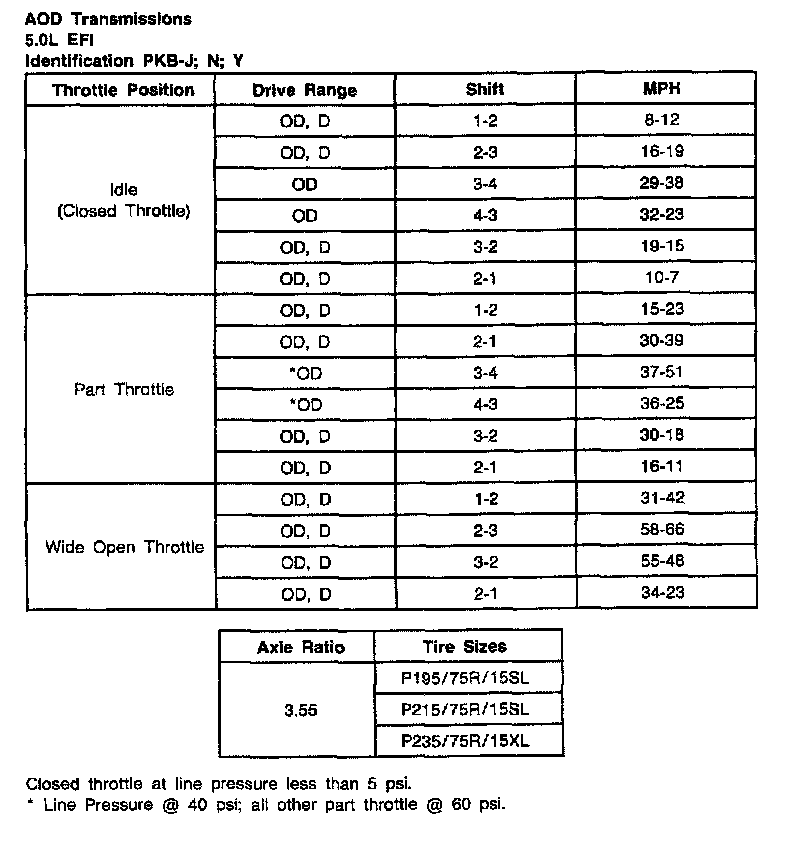

AOD 4-spd A/T, Shift Speeds (5.0L EFI):

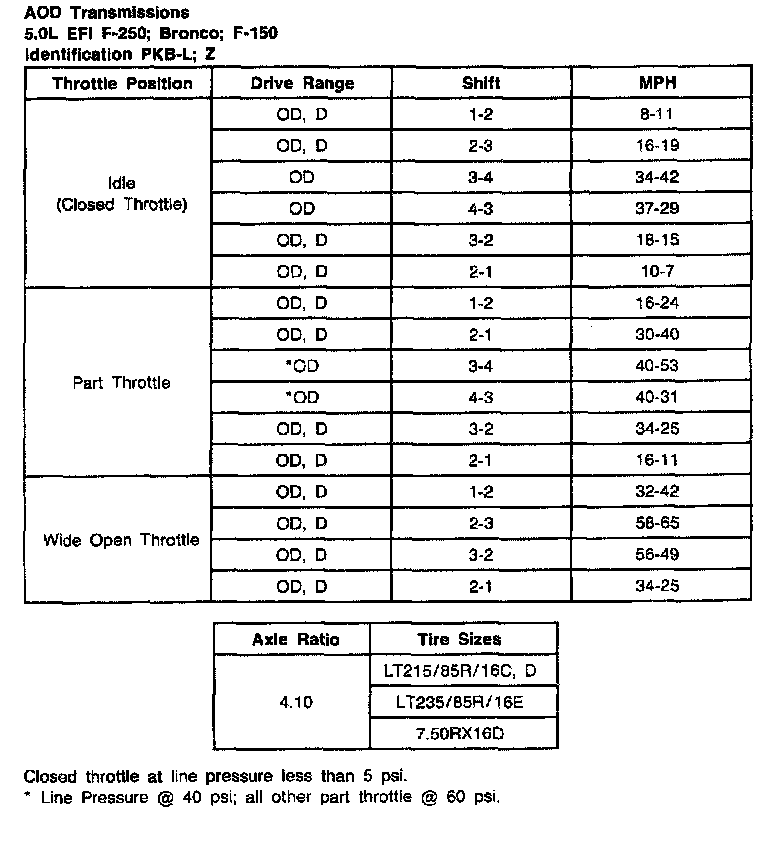

AOD 4-spd A/T, Shift Speeds (5.0L EFI,F-150/250,Bronco):

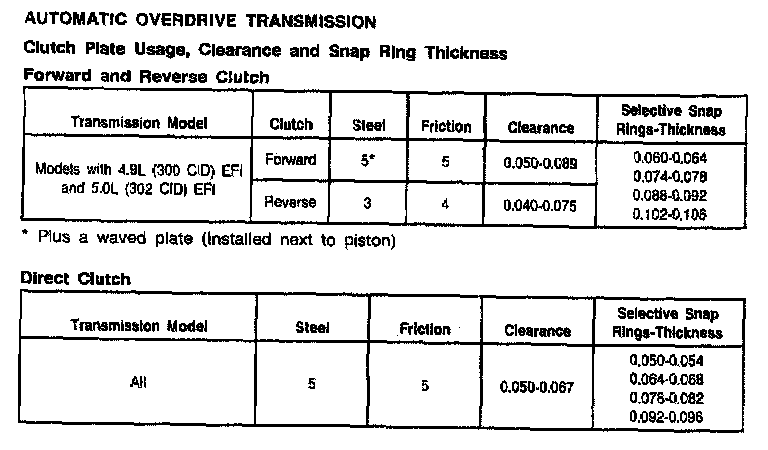

AOD 4-spd A/T, Clutch Plate Usage/Clearances:

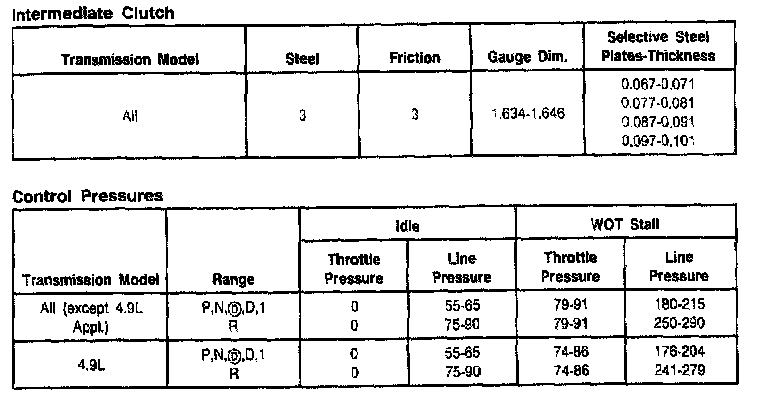

AOD 4-spd A/T, Intermediate Clutch/Control Pressure:

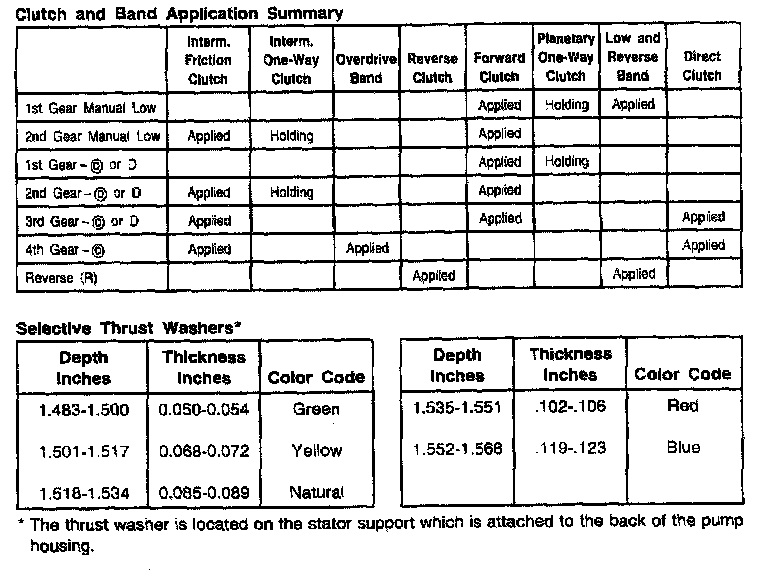

AOD 4-spd A/T, Clutch/Band Application-Thrust Washers:

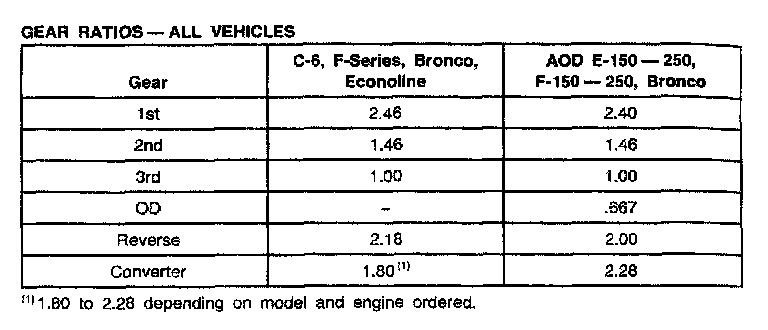

AOD 4-spd A/T, Gear Ratios (E150-250, F150-250, Bronco):

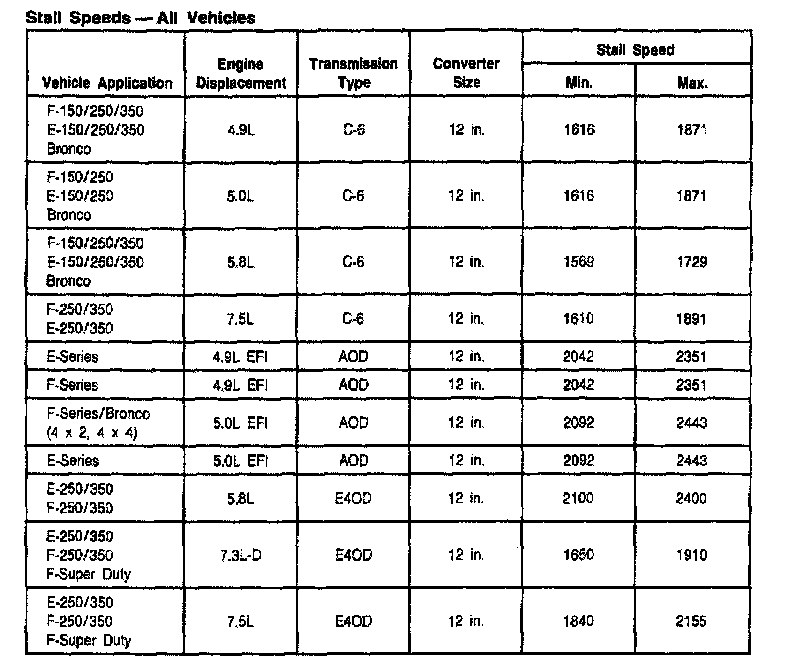

AOD 4-spd A/T, Converter Size/Stall Speed (ALL):

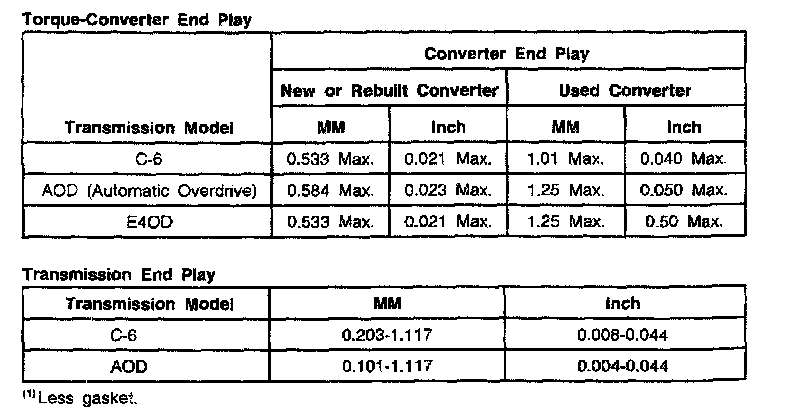

AOD 4-spd A/T, Transmission/Converter End Play:
