System Diagram
>>
Dual Fuel Tanks
Dual Fuel Tanks

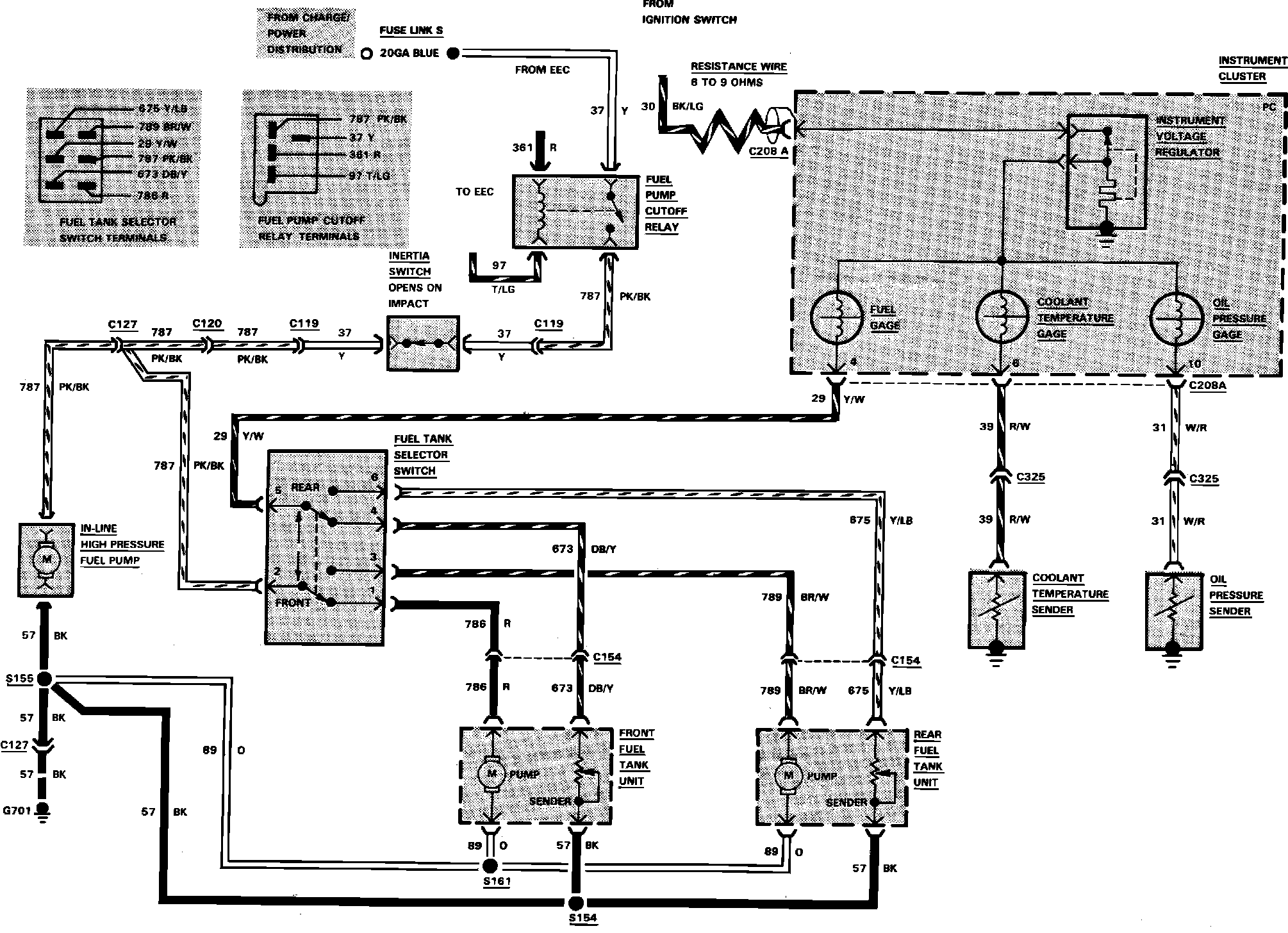

Fig. 16 Electric Fuel Pump Control, Fuel Tank Selector & Gauges Wiring Circuit. F150-350 W/V8-302 (5.0L) EFI Engine & Dual Fuel Tanks:
