Electrical Diagrams

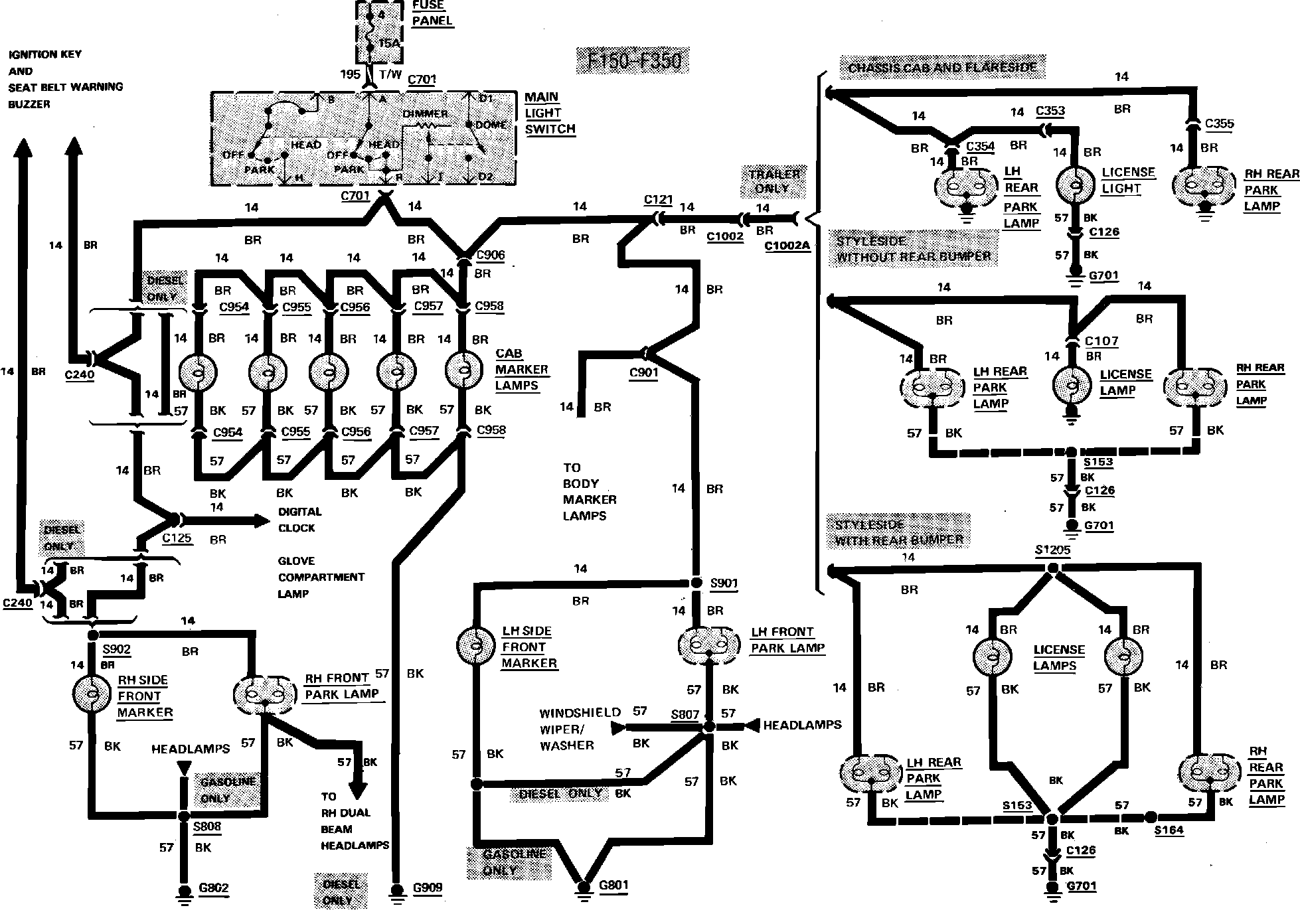

Fig. 22 Exterior Lamp (Body Markers, License, Parking & Trailer) Wiring Circuit (Part 1 of 2). F150-350:

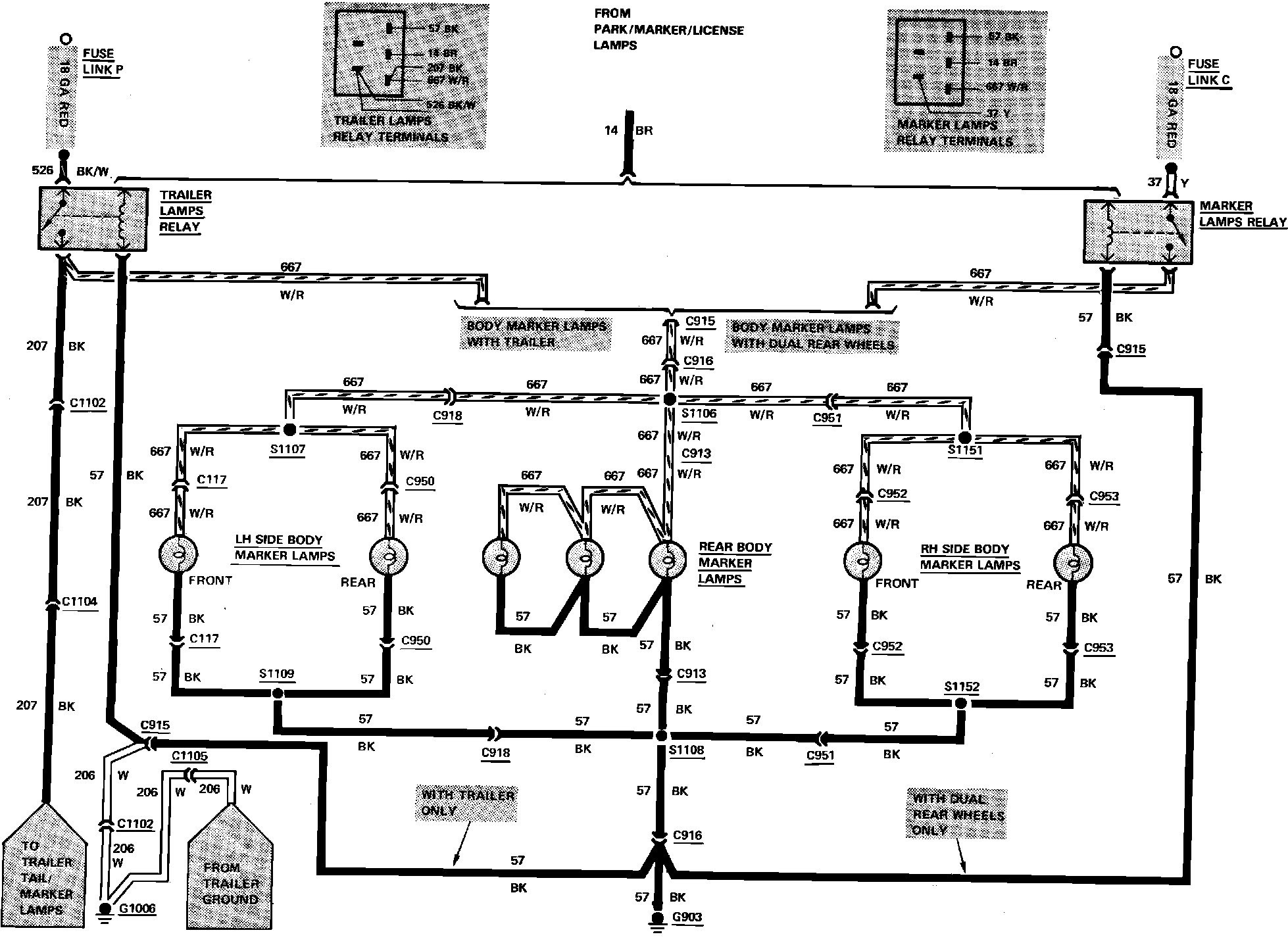

Fig. 22 Exterior Lamp (Body Markers, License, Parking & Trailer) Wiring Circuit (Part 2 of 2). Bronco & F150-350:
