F 150 4WD Pickup V8-302 5.0L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Vacuum and Vapor Hose Diagrams
>>
Air Conditioning/Heater
Air Conditioning/Heater

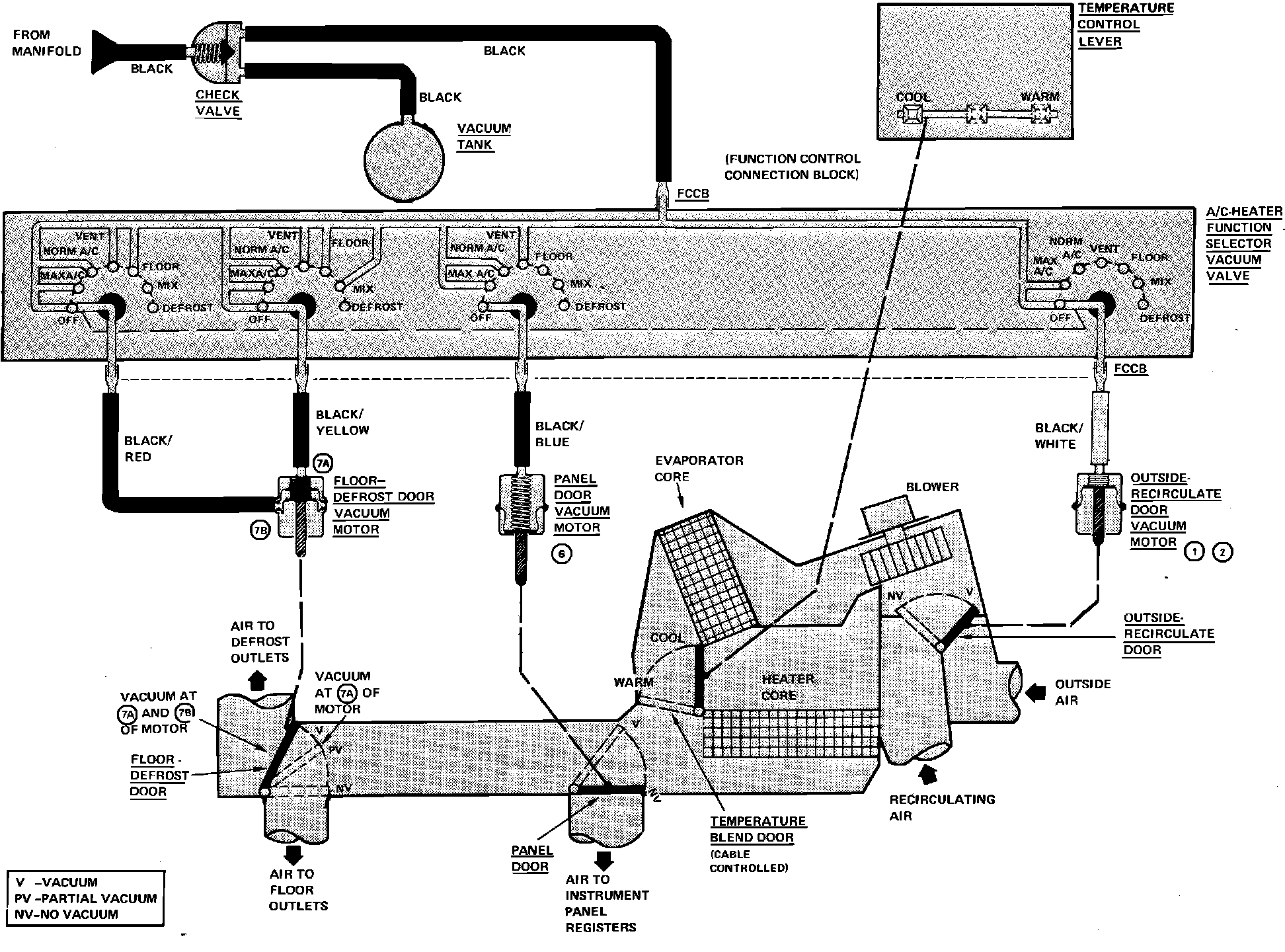

Fig. 3 Air Conditioning & Heater Vacuum Circuit:
