Sun Gear and Drive Shell

Sun Gear and Drive Shell

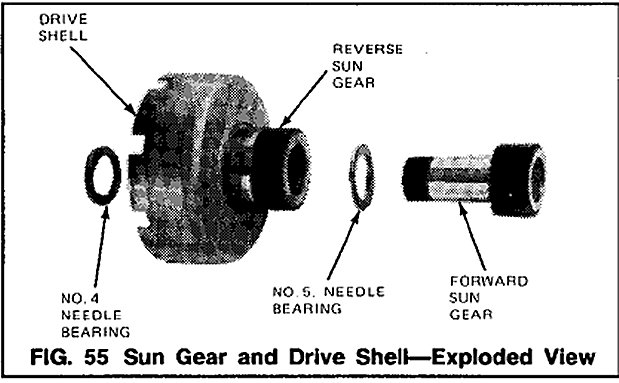

Refer to Fig. 55.

Disassembly

1. Remove the No.4 needle bearing from the drive shell.
2. Remove the forward sun gear and No.5 needle bearing from the drive shell.
3. Remove the No.5 needle bearing from the forward sun gear.

Assembly

The sun gear and drive shell will be assembled as part of the transmission assembly procedure.
