Output Shaft

Output Shaft

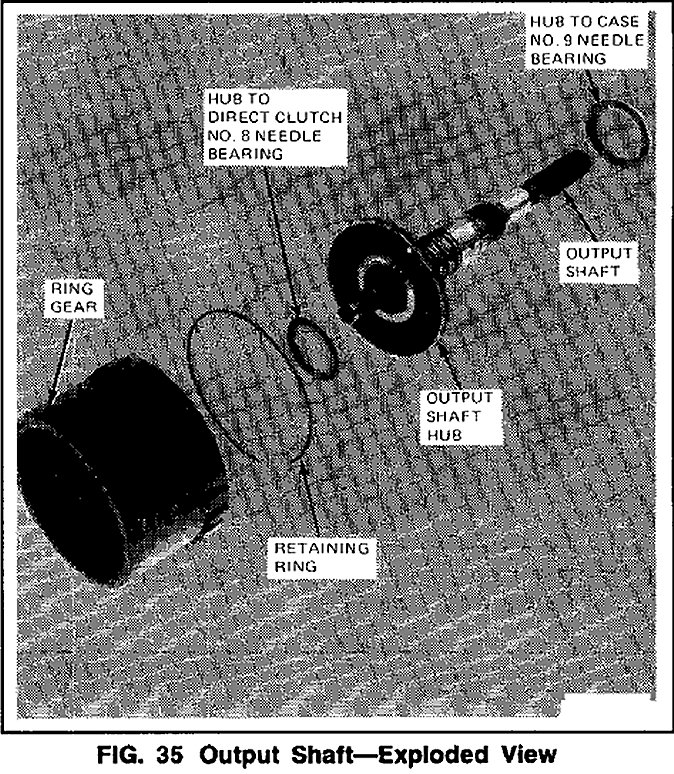

Refer to Fig. 35.

Disassembly

1. Remove the ring retaining the output shaft hub to the ring gear.
2. Separate the output shaft and hub assembly from the ring gear.
3. Remove the direct clutch from the ring gear and the No.8 needle bearing from the back of the direct clutch.
4. Remove the four output shaft seal rings and the hub-to-output shaft retaining ring. Separate the hub from the output shaft.
5. Remove the two direct clutch seal rings from the output shaft.

Assembly

To assemble the output shaft, reverse the disassembly procedure.
