Governor

Governor

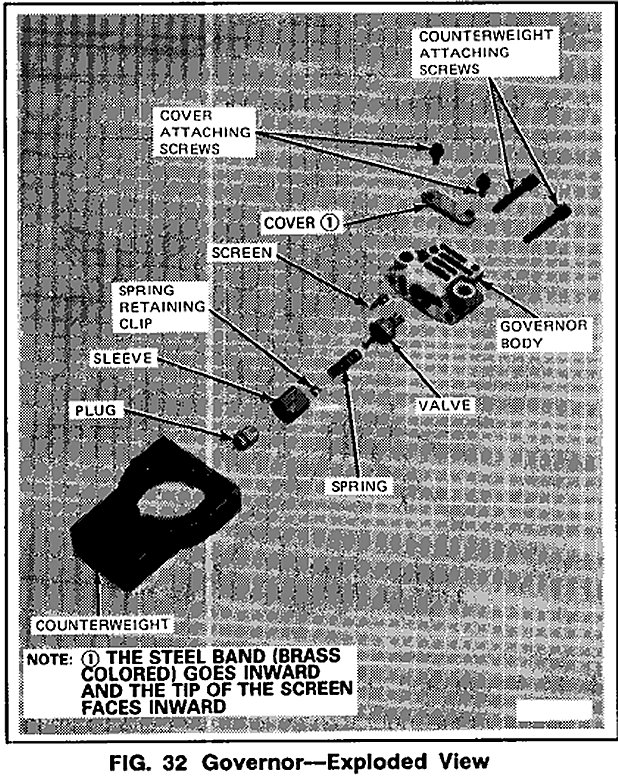

Refer to Fig. 32.

Disassembly

1. Remove the screws attaching the counterweight to the governor body.
2. Remove the cover screws and cover.
3. Remove the plug, the sleeve, and the valve from the governor body.

Assembly

1. if removed, reinstall the clip and spring on the valve.
2. Install the valve in the governor body.
3. Install the sleeve in the governor body with the points outward.
4. Install the plug in the sleeve with the knurled face inward.
5. Attach the cover. Tighten the screws to 2.3-3.4 N.m (20-30 in-lbs).
6 Install the screen in the body. The steel band goes inward and the tip of the screen faces outward.
7. Position the governor body to the counterweight and install the screws. Tighten the screws to 6-7 N.m (50-60 in-lbs). The finished face of the body should be flush with the face of the counterweight. (If it is not, the body is installed backwards).
