One-Way Clutch

One-Way Clutch

Disassembly

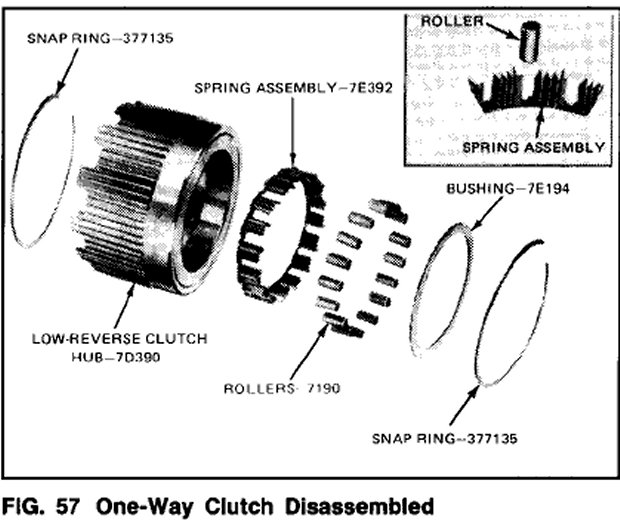

1. Remove the snap ring and bushing from the rear of the low-reverse clutch hub (Fig. 57).
2. Remove the rollers from the spring assembly and lift the spring assembly from the hub.
3. Remove the remaining snap ring from the hub.

Assembly

1. Install a snap ring in the forward snap ring groove of the low-reverse clutch hub.

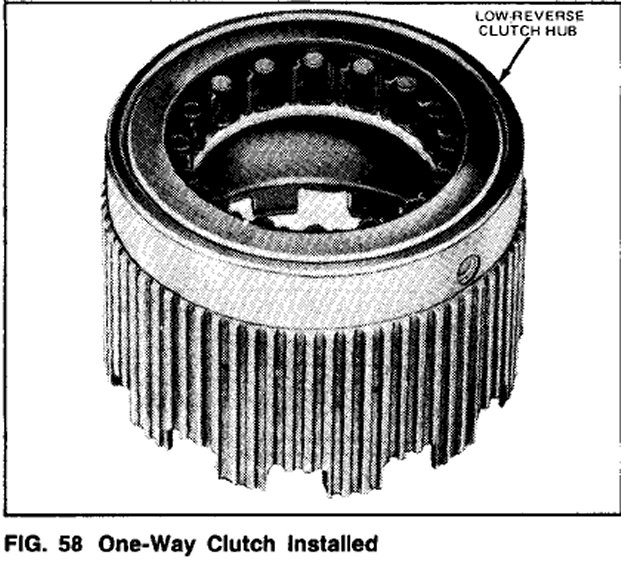

2. Place the low-reverse clutch hub on the bench with the forward end down (Fig. 58).
3. Install the one-way clutch spring assembly on top of the snap ring.






4. Install a roller into each of the spring assembly compartments (Fig. 57).
5. Install the bushing on top of the spring assembly.






6. Install the remaining snap ring of the low-reverse clutch piston. (Fig. 39)

Assembly

1. Dip the two new seals in clean transmission fluid.
2. Install the seals on the pistons.
