Output Shaft Hub and Ring Gear

Output Shaft Hub and Ring Gear

Disassembly

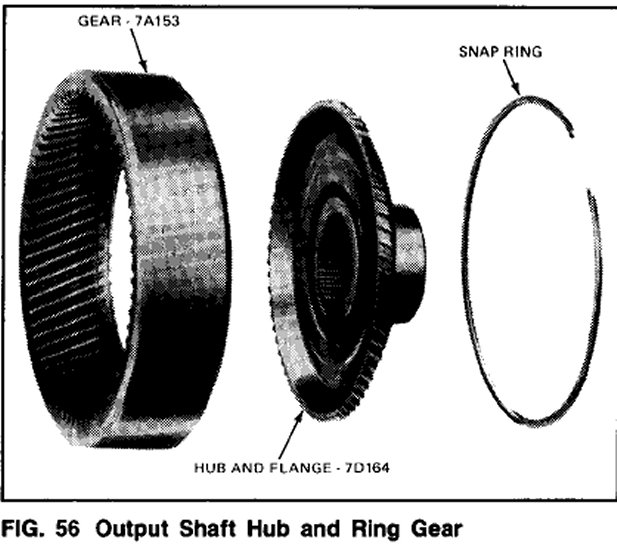

1. Remove the hub snap ring (Fig. 56) from the ring gear.
2. Lift the hub from the ring gear.

Assembly

1. Position the hub in the ring gear.
2. Secure the hub with the snap ring. Make certain that the snap ring is fully engaged with the groove.
