Neutral Start Switch

Neutral Start Switch

Transmission Out of Vehicle

Removal and Installation

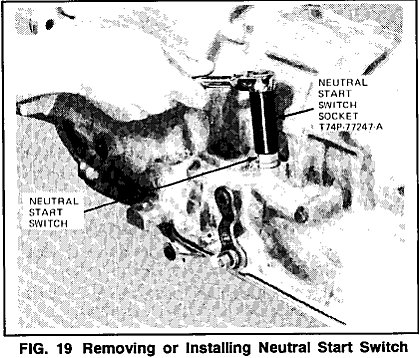

Fig. 19

1. Using the neutral start switch socket, Tool T74P-77247-A (Fig. 19) (Or equivalent) remove the switch from the case.
2. Remove the 0-ring seal and discard.
3. Install a new seal on the neutral start switch.
4. Install the switch in the case using the neutral start switch socket Tool T74P-77247-A (Fig. 20) (or equivalent).

Transmission In Vehicle

Removal

1. Raise the vehicle on a hoist or stands.
2. Disconnect the neutral start switch electrical harness from the neutral switch. Lift the harness straight up off the switch. (No lateral movement)
3. Using the neutral switch socket Tool T74P-77247-A, remove the neutral start switch and 0-ring seal. (Fig. 19).

Installation

1. Install a new 0-ring seal on a new neutral start switch.
2. Install the new switch and seal into the case, using the neutral start switch socket Tool T74P-77247-A (Fig. 19). Tighten to 11-15 N.m (8-11 ft-lbs).
3. Connect the neutral switch harness to the new neutral start switch.
4. Lower the vehicle.
